PRODUCT

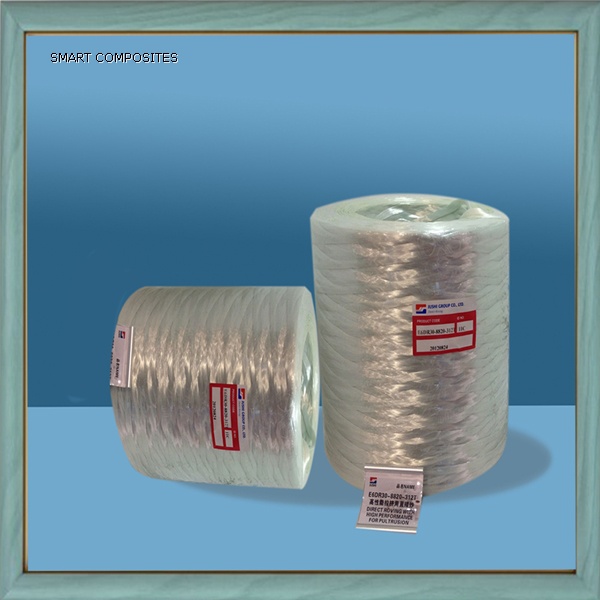

E312Direct Roving For Filament Winding
Direct Roving for filament winding is compatible with unsaturated polyester, vinyl ester, epoxy and phenolic resins, and is widely used in building & construction, telecommunication and insulator industry.
|
Type of glass |
E |
|
Filament diameter (μm) |
13, 17-24,30,31 |
|
Linear Density (tex) |
300,600,1200,2400,4400,4800,9600 |
Technical Parameters
|
Linear Density |
Filament diameter |
Moisture content |
LOI |
|
±5% |
±1 |
≤0.10 |
0.6±0.15 |
The product can be packed on pallet in both small & big size
|
Package height(mm) |
260 |
|
Package inside diameter (mm) |
160 |
|
Package outside diameter(mm) |
275 |
|
Package weight(kg) |
15.6 |
|
Number of layers |
3 |
4 |
|
Number of rolls per layer |
16 |
|
|
Number of rolls per pallet |
48 |
64 |
|
Net weight per pallet (kg) |
750 |
1000 |
|
Pallet length (mm) |
1120 |
1120 |
|
Pallet width (mm) |
1120 |
1120 |
|
Pallet height (mm) |
940 |
1200 |
