PRODUCT

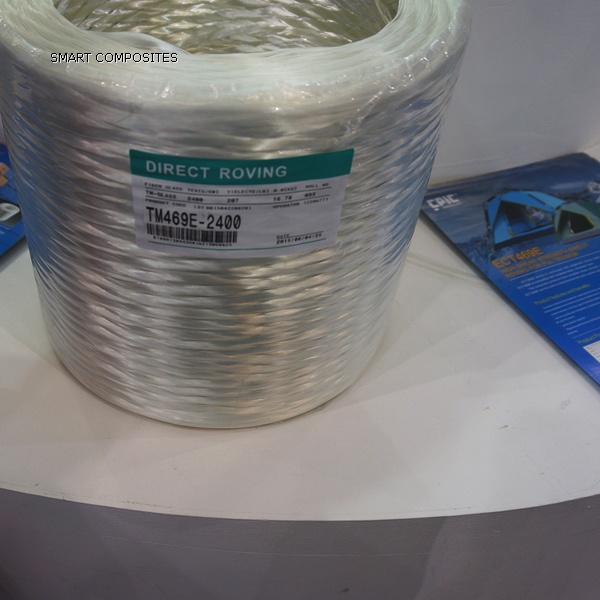

Filament winding rovings are especially designed as reinforcements for thermoset resins used in filament wound pipes, pressure vessels, chemical storage tanks, automobile springs and rocket motor cases, etc. The size system of filament winding rovings are made to achieve good wetting characteristics and compatibility with polyester, vinylester and epoxy resins.
Properties:
Even tension
Specifications
- Available in E-Glass and C-Glass
- Filament diameter 13, 15, 17 and 24 microns
- Texsizes 300, 700, 1150, 1400, 2400, 4800,and 9600
- Yield 675, 450, 225, 207, 113 yds/lb
- Weight per ball 20 kg (44 lbs)
- Total around 18 metric tonnes (37,485 lbs) per 20ft container
|
Product code |
Tex (g/1000m) |
Yield (yds/lb) |
Filament diameter (µm) |
Resin |
Application |
Type |
|
EC24-2400 |
2400 |
207 |
24 |
Unsaturated polyester, vinyl ester, epoxy |
Filament winding, weaving |
Direct roving (single end) |
|
EC24-1200 |
1200 |
413 |
24 |
Unsaturated polyester, vinyl ester, epoxy |
Filament winding, weaving |
Direct roving (single end) |
|
EC24-2400 |
2400 |
207 |
24 |
Epoxy |
Filament winding, pultrusion |
Direct roving (single end) |
|
EC24-1200 |
1200 |
413 |
24 |
Epoxy |
Filament winding, pultrusion, weaving |
Direct roving (single end) |
|
EC13-2400 |
2400 |
207 |
13 |
Unsaturated polyester, vinyl ester, epoxy |
Filament winding |
Assembled roving (multi-end) |
|
EC13-1200 |
1200 |
413 |
13 |
unsaturated polyester, vinyl ester, epoxy |
Filament winding |
Assembled roving (multi-end) |
|
EC13-2400 |
2400 |
207 |
24 |
Epoxy |
Filament winding, pultrusion |
Assembled roving (multi-end) |
|
EC13-1200 |
1200 |
413 |
24 |
Epoxy |
Filament winding, pultrusion |
Assembled roving (multi-end) |
